Ubiquiti UniFi Pro 24 PoE Switch (USW-Pro-24-POE) | 24-Port Layer 3 Managed Network Switch

Professional Enterprise Network Switching

The Ubiquiti UniFi Pro 24 PoE (USW-Pro-24-POE) is a high-performance, fully managed Layer 3 switch engineered for demanding enterprise-grade network environments. Designed to provide reliable, scalable connectivity and sophisticated traffic management, this versatile network switch serves as the ideal backbone for businesses ranging from growing startups to established corporate offices. It seamlessly combines high-speed switching performance with intelligent, flexible power delivery to ensure your critical business infrastructure remains online, efficient, and secure.

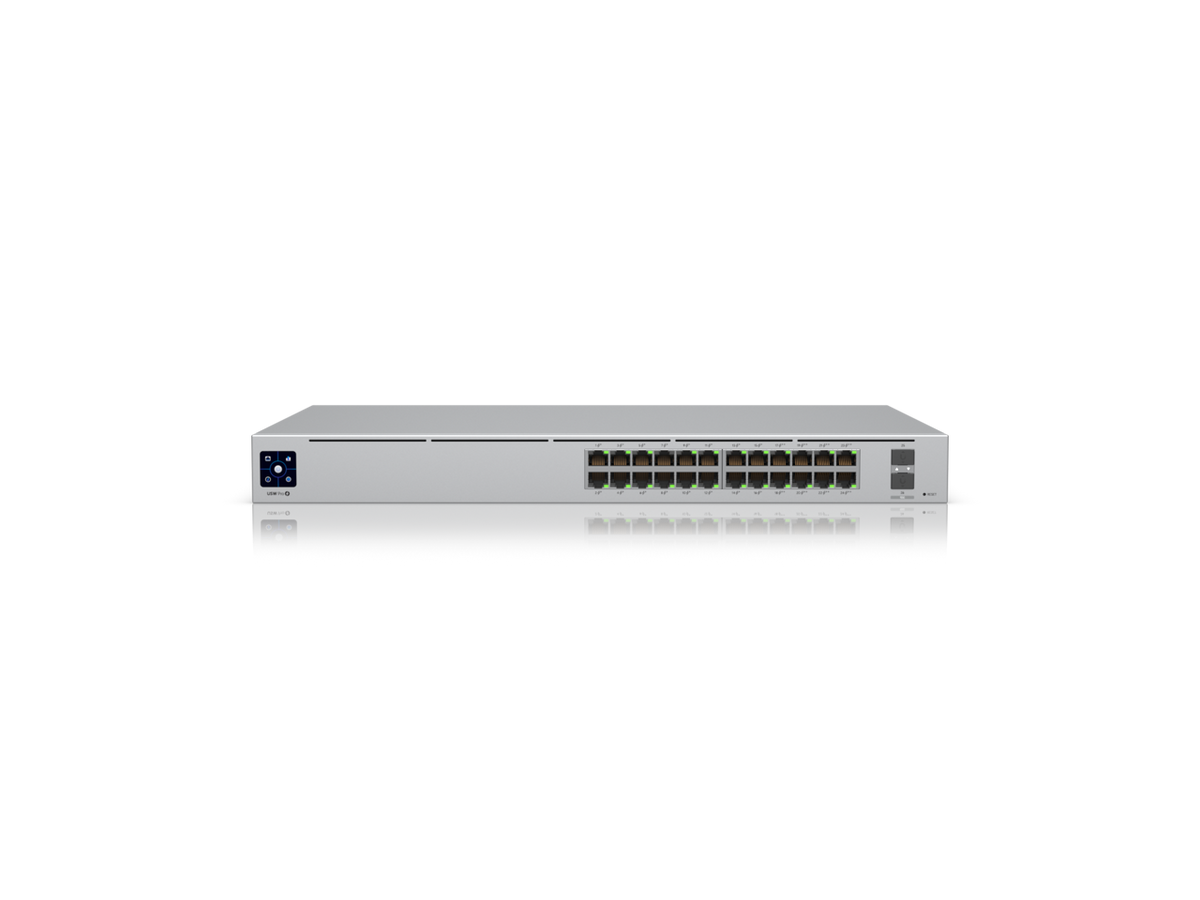

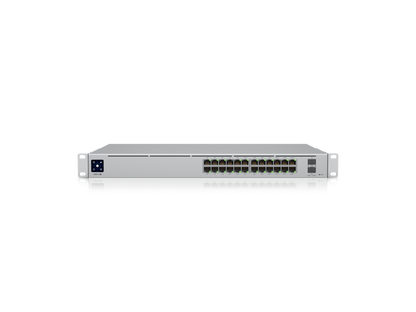

Equipped with 24 high-speed Gigabit Ethernet ports, this unit supports a comprehensive array of devices including high-definition IP security cameras, VoIP desk phones, and wireless access points. The integrated 400W total power budget allows for seamless device integration across your facility. Furthermore, the robust 1U rack-mountable chassis ensures a clean, professional, and organized installation within your server room or network cabinet, optimizing airflow and physical security.

Advanced Network Performance Features

• Layer 3 Switching Power: Optimize your network traffic and segmentation with advanced routing protocols. Features include inter-VLAN routing, static routing, and integrated DHCP server functionality to maximize performance and security.
• High-Power PoE Flexibility: Equipped with 16 ports supporting 802.3at PoE+ and 8 ports supporting 802.3bt PoE++, this switch handles high-draw hardware such as PTZ surveillance cameras and modern Wi-Fi 6/6E access points with ease.

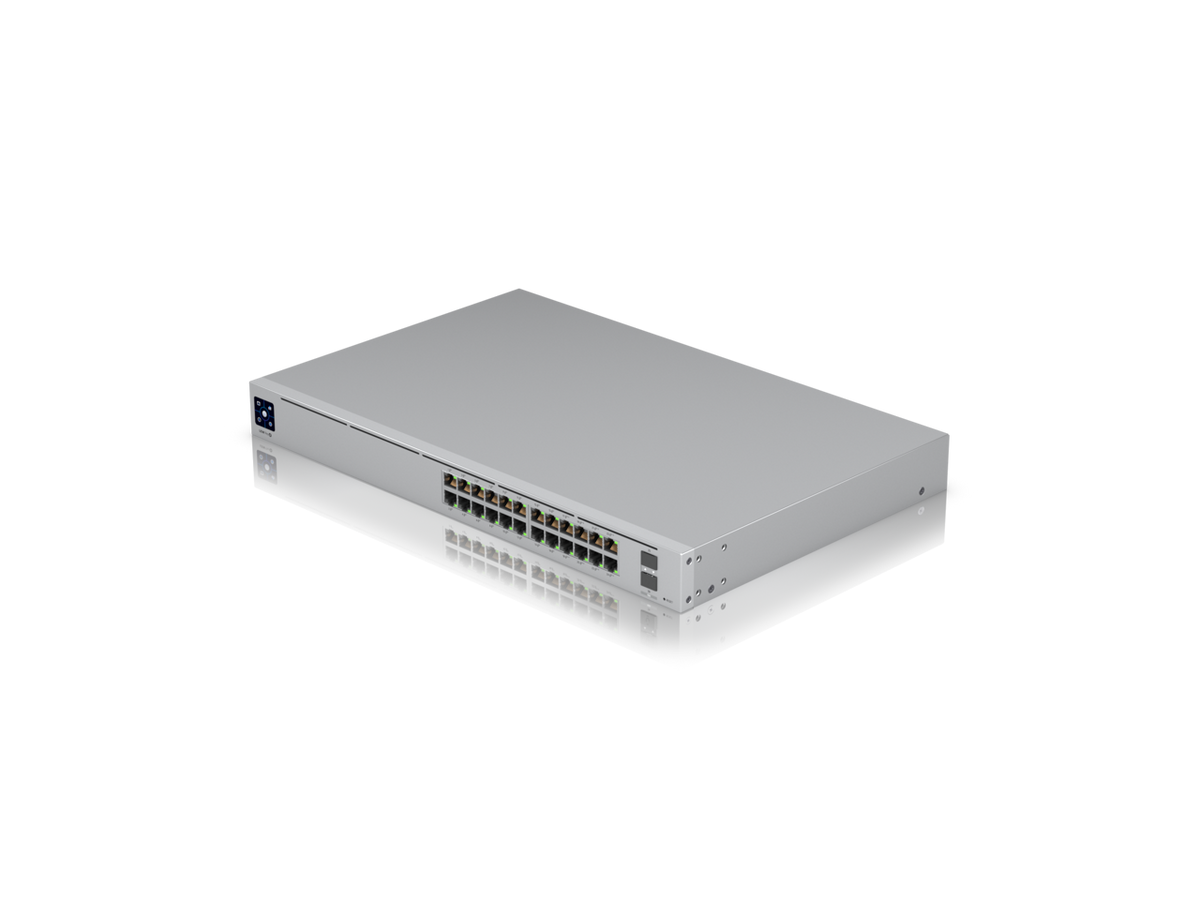

• 10G SFP+ Connectivity: Achieve lightning-fast fiber uplinks via the two dedicated 10G SFP+ ports, providing high-capacity backplane throughput for demanding server connections and multi-switch stacks.
• Intelligent Thermal Design: Engineered with an advanced, whisper-quiet cooling system, this switch is ideal for office environments or noise-sensitive areas without sacrificing industrial-grade reliability.
• Unified UniFi Management: Centralize your entire infrastructure management through the intuitive UniFi Controller interface. Gain access to deep packet inspection, real-time analytics, and automated firmware updates from one centralized dashboard.
• Interactive LCM Touchscreen: Monitor network health, view system alerts, and configure basic settings instantly via the integrated 1.3-inch LCM touchscreen display.
• Redundant Power Ready: Compatible with the Ubiquiti SmartPower RPS system for enhanced power redundancy, ensuring maximum uptime during potential power supply failures.

Technical Specifications

• Throughput & Capacity: 44 Gbps non-blocking throughput; 88 Gbps switching capacity; 65.472 Mpps forwarding rate.
• Power Consumption: 50W base power consumption (excluding PoE); includes an internal 450W AC/DC power supply.
• PoE Standards: Ports 1-16 support 802.3af/at (up to 32W); Ports 17-24 support 802.3bt (up to 64W).
• Physical Dimensions: 442.4 x 285 x 43.7 mm (17.42 x 11.22 x 1.72 in).
• Weight: 4.30 kg (9.48 lb) without mounts; 4.39 kg (9.68 lb) with included brackets.
• Operating Environment: -5 to 40° C (23 to 104° F) at 10-90% non-condensing humidity.
• Compliance: CE, FCC, and IC certified with integrated advanced ESD/EMP protection up to 16kV.

What's in the Box

• Ubiquiti UniFi Pro 24 PoE Switch (USW-Pro-24-POE)
• Rack-Mount Bracket Installation Kit
• Standard Power Cord
• Quick Start Guide Documentation
