GIGABYTE H610M D3W WIFI6 Intel LGA 1700 Micro ATX Motherboard

Product Overview

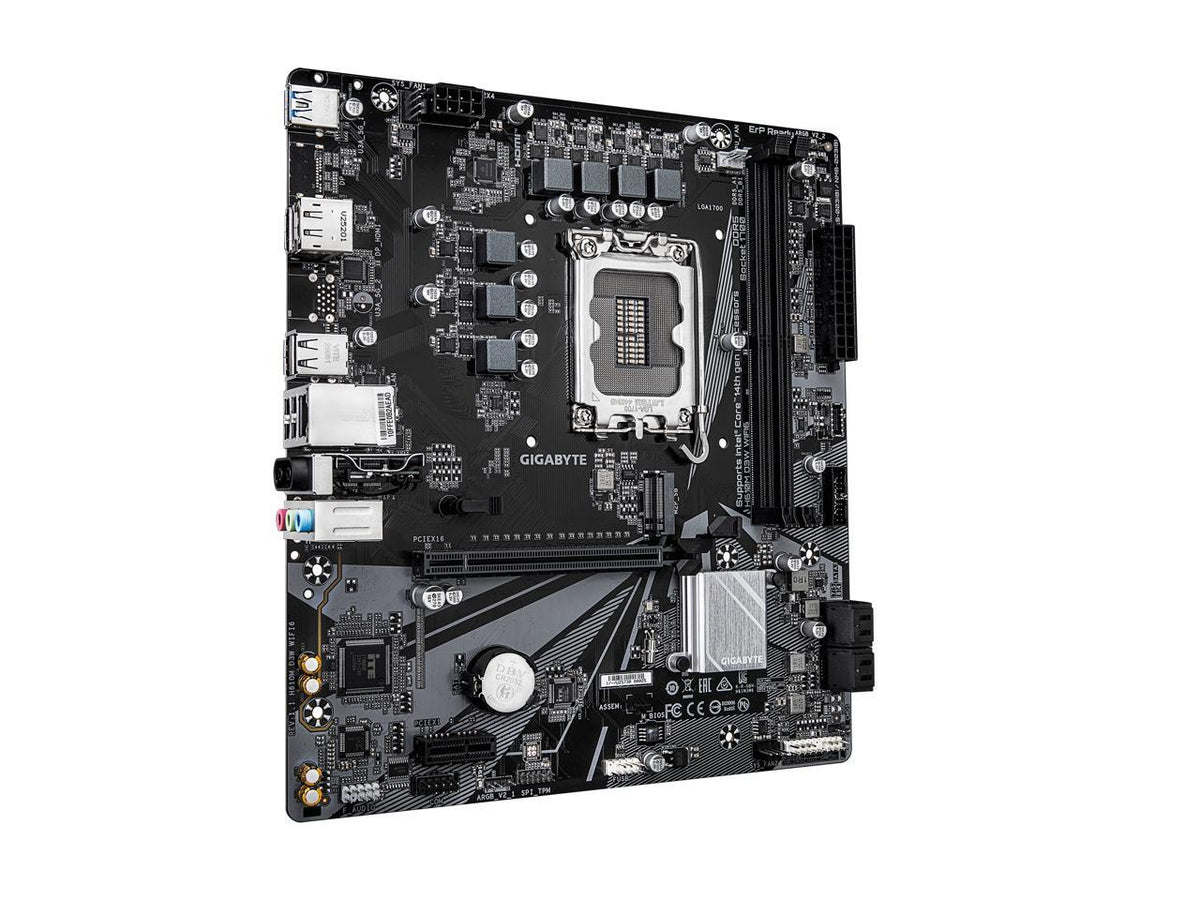

The GIGABYTE H610M D3W WIFI6 is a compact Micro ATX motherboard engineered for Intel LGA 1700 processors. Designed to balance modern connectivity with space-efficient layout, this board brings Wi‑Fi 6 wireless networking, solid storage options, and essential expansion for mainstream desktop and small-form-factor builds. It supports modern DDR4 memory configurations, offers a PCIe x16 slot for discrete graphics, and provides M.2 NVMe support for high-speed storage. The board is well-suited for everyday productivity, media systems, home office machines, and budget gaming rigs that require current connectivity standards in a Micro ATX footprint.

Key Features

• Intel LGA 1700 Socket Compatibility: Built to accept current generation Intel processors that use the LGA 1700 socket, enabling a wide choice of CPUs for performance scaling.
• Micro ATX Form Factor: Compact Micro ATX layout ideal for smaller cases while preserving essential expansion and connectivity for typical desktop needs.
• Wi‑Fi 6 Integrated: Onboard Wi‑Fi 6 (802.11ax) wireless connectivity provides faster wireless throughput, improved latency, and better multi-device performance in dense environments.
• DDR4 Memory Support: Supports DDR4 memory modules with two DIMM slots, allowing straightforward upgrades and up to 64GB total memory capacity for multitasking and modern applications.
• M.2 NVMe Storage Support: Includes at least one M.2 slot for NVMe SSDs to deliver high-speed storage and fast system responsiveness.
• SATA III Ports: Multiple SATA III connectors provide compatibility with mainstream 2.5" and 3.5" SATA drives for bulk storage and legacy devices.
• PCIe x16 Graphics Slot: Full-length PCIe x16 slot supports discrete graphics cards to enable gaming and GPU-accelerated workloads.

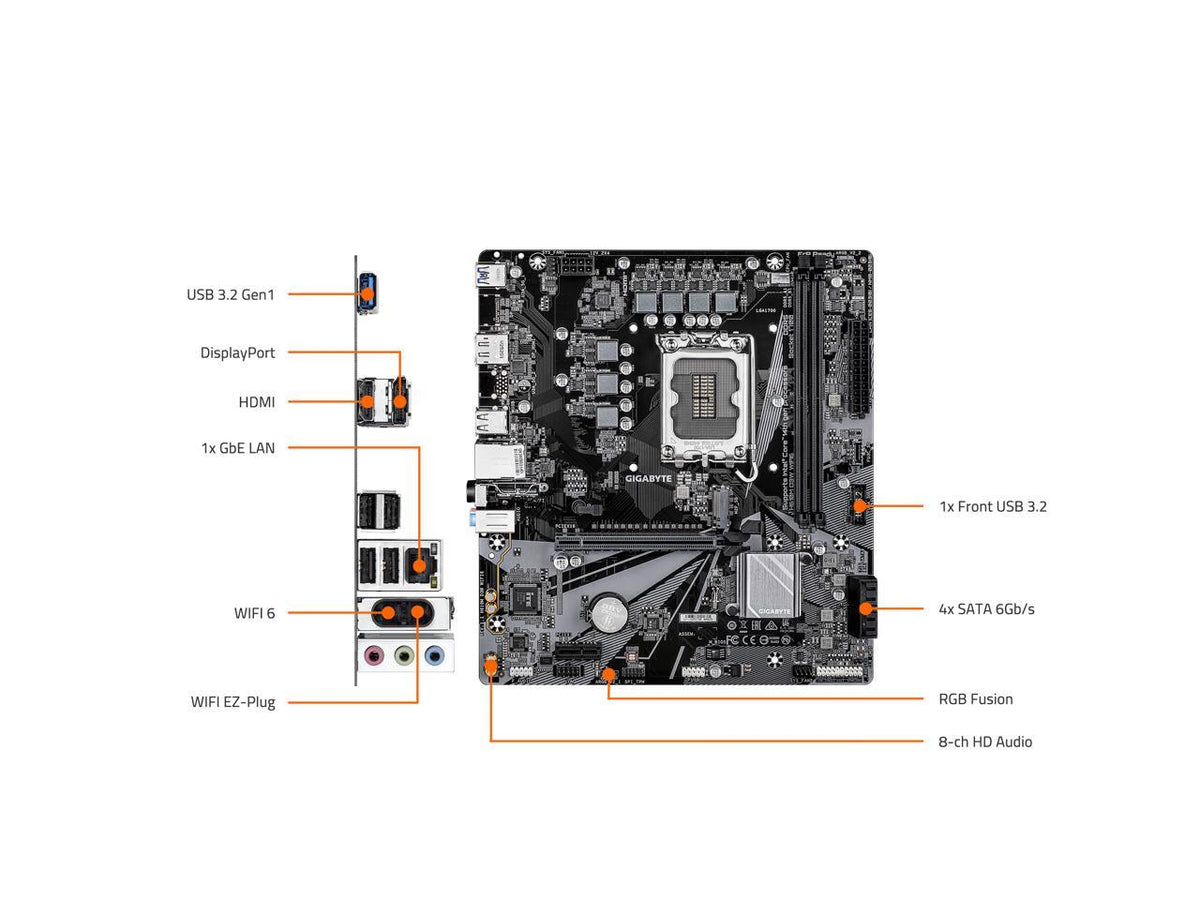

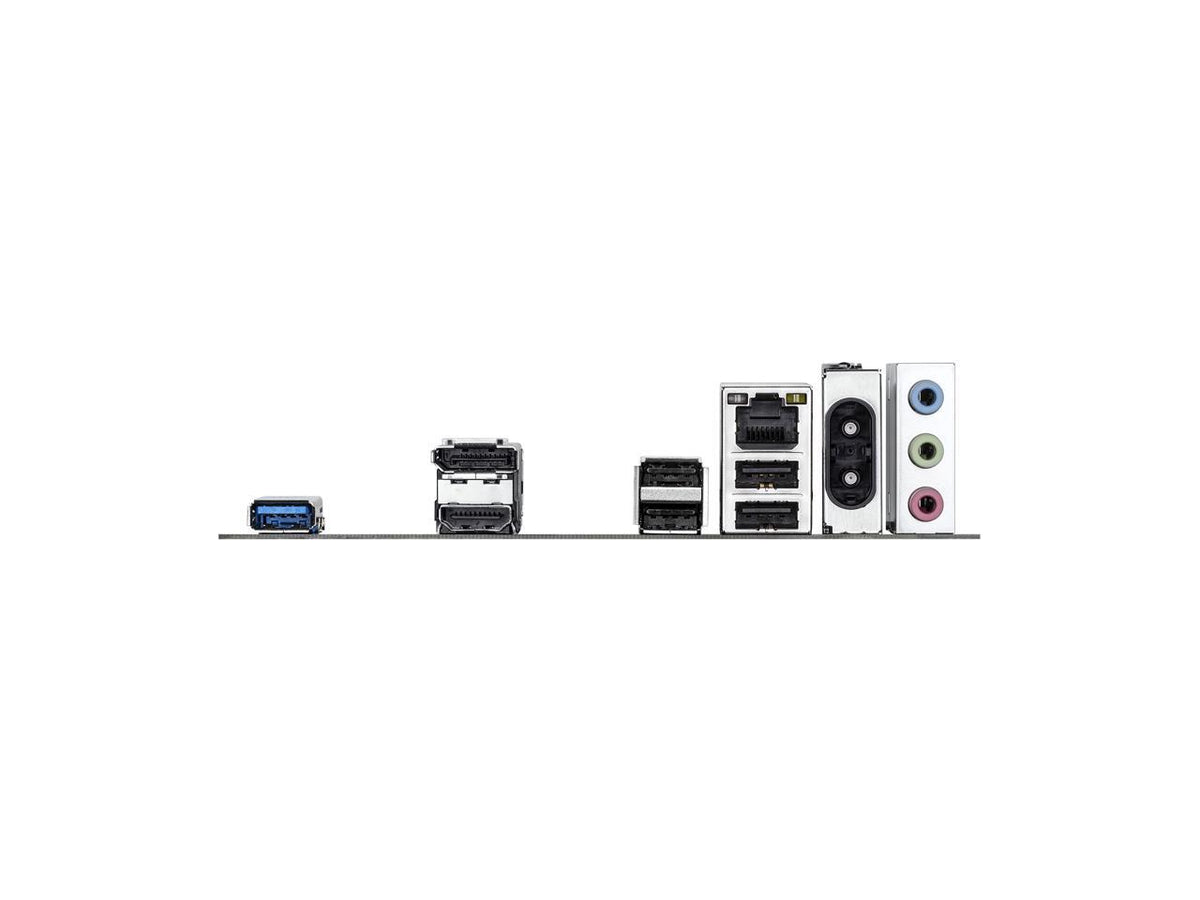

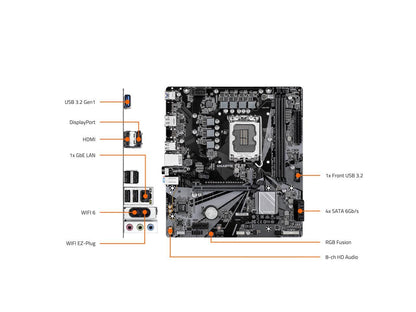

• Rear I/O Versatility: A practical assortment of rear I/O ports covers display outputs, USB connectivity, audio, and wired LAN to cover typical peripheral setups.

Technical Specifications

• Brand: GIGABYTE; Model: H610M D3W WIFI6; Board Type: Micro ATX motherboard specifically for desktop PCs.

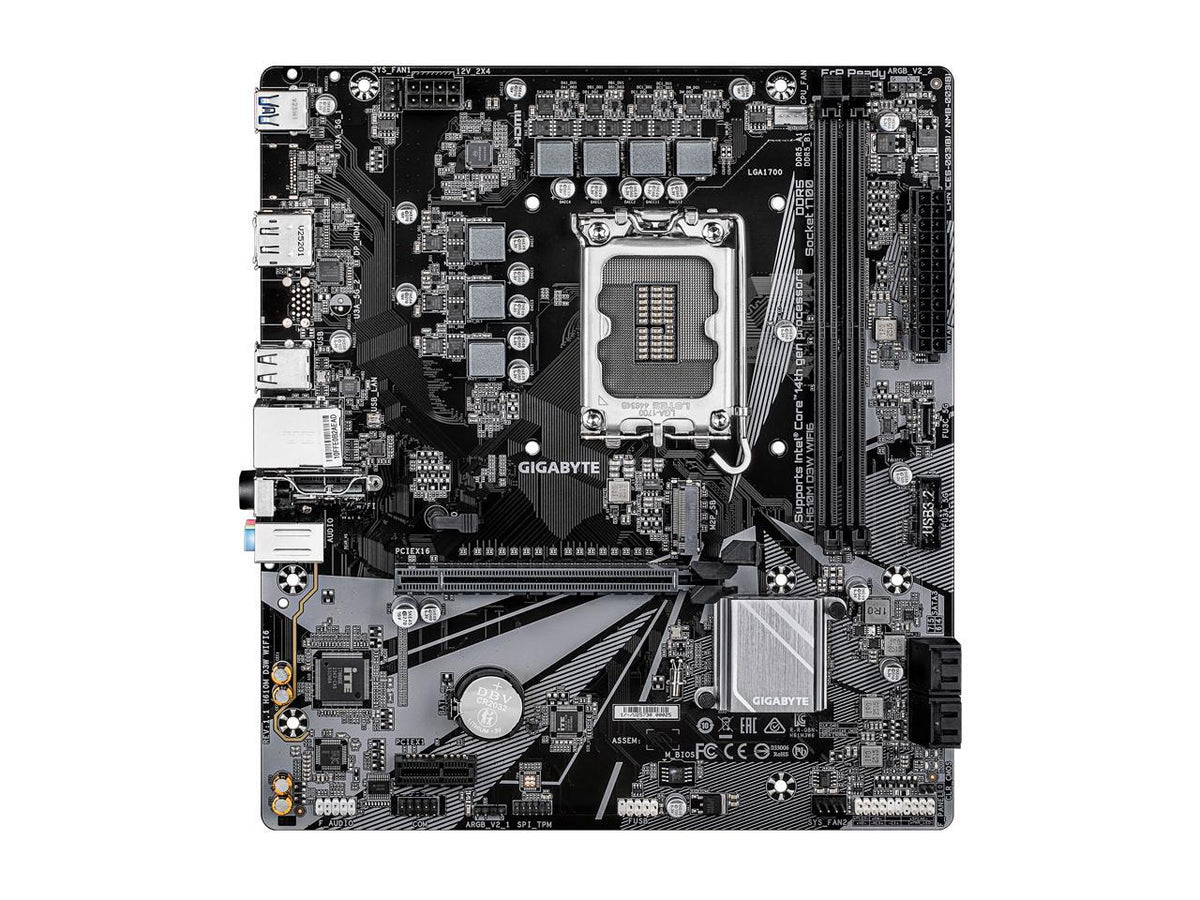

• Socket: Intel LGA 1700 compatible with Intel 12th/13th generation family processors that use the LGA1700 interface.
• Chipset: Intel H610 chipset providing mainstream feature set and stable platform support for single‑GPU and storage configurations.
• Memory: DDR4 memory support via 2 x DIMM slots; up to 64GB system memory total (dual-channel capable), supporting common DDR4 speeds for desktop usage.
• Expansion: 1 x PCIe x16 slot for graphics or expansion cards plus additional smaller slots as typical to Micro ATX layouts for added peripherals.
• Storage Interfaces: 1 x M.2 slot supporting NVMe SSDs for high-speed storage; 4 x SATA III ports for HDDs and SATA SSDs.
• Networking: Integrated Wi‑Fi 6 (802.11ax) wireless solution for modern wireless networking and Bluetooth support for wireless peripherals.
• Ethernet: Onboard wired Ethernet (Gigabit) for stable wired networking and low-latency connectivity.
• Audio and Video: Integrated audio codec for 7.1 channel support via rear and front panel headers; video outputs available on rear I/O (HDMI and legacy display outputs depending on CPU graphics).
• Form Factor & Power: Micro ATX size, standard 24-pin ATX power connector and CPU power header to match typical desktop power supplies.

What's in the Box

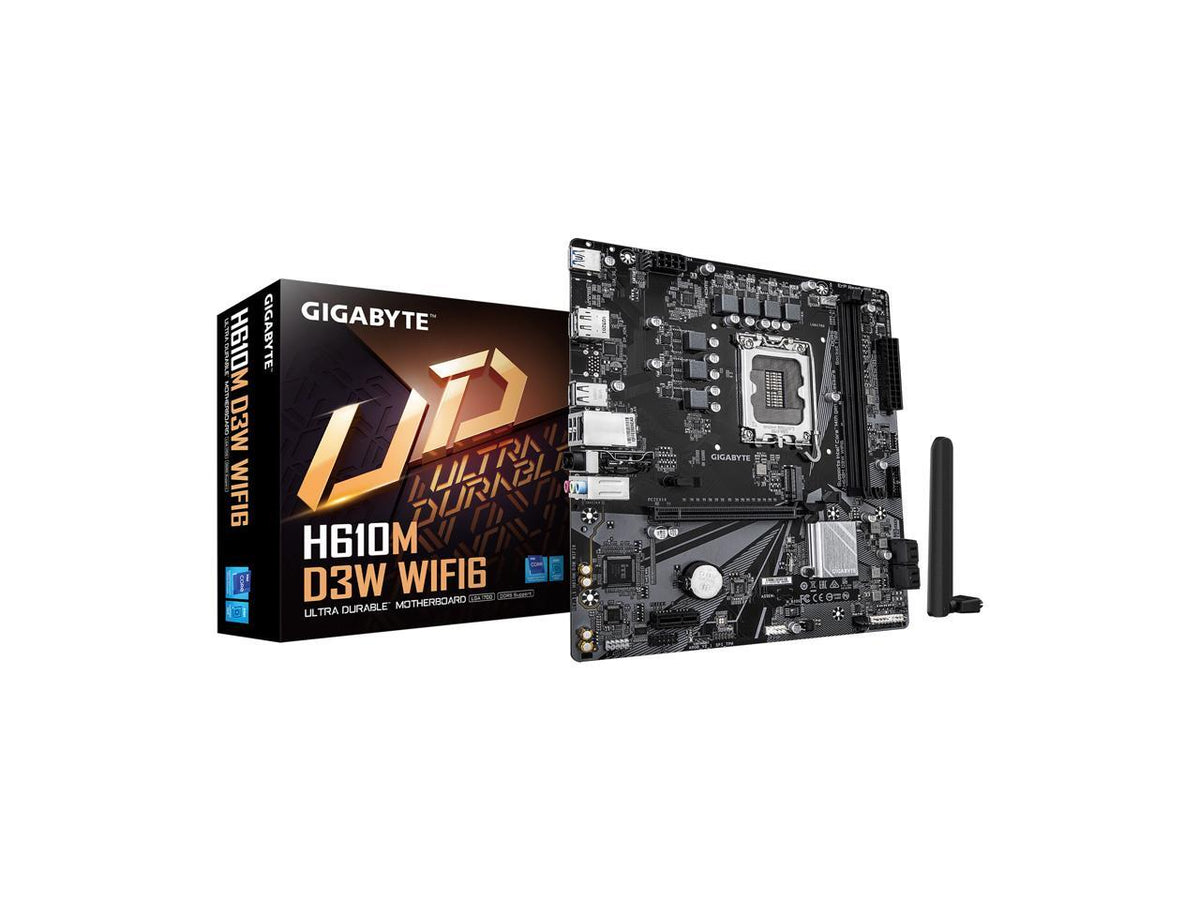

• GIGABYTE H610M D3W WIFI6 Micro ATX Motherboard (factory packaged).
• Wi‑Fi antenna(s) for onboard Wi‑Fi 6 module to maximize wireless reception.
• User manual and quick installation guide with motherboard layout, connector descriptions, and basic troubleshooting.
• SATA cables for connecting SATA drives to the board's SATA III ports (quantity may vary by bundle).
• Driver and utility DVD or information leaflet for downloading drivers and BIOS updates (where included).
• Accessories pack including I/O shield and mounting screws as required for standard installation.
